Datavideo Camera Kit

Free Shipping!


Get one of these two camera kits featuring the PTC-150TL HD/SD Video Cameras by Datavideo!  These GoKit Portable Video Solutions are perfect for on-the-go or temporary set-up productions in churches, Sunday School, Outreach or church meetings.

Availability: Ready to Ship
Datavideo 2x Camera GoKit
Datavideo 2x Camera GoKit
Datavideo 2x Camera GoKit
Regular Price $6,494.00 Special Price $6,197.00
Datavideo 3x Camera GoKit
Datavideo 3x Camera GoKit
Datavideo 3x Camera GoKit
Regular Price $9,274.00 Special Price $8,874.00

Datavideo is featuring these two new camera packages.   The PTC-150TL HD/SD Video Camera is a PTZ camera which captures HD video at 1920 x 1080 resolution and features wide dynamic range with backlight compensation.

There are 2 kits available for these cameras:

Maximize your workflow by creating 8-camera angles using only 2 4K Cameras. It comes with the KMU-100 4K Multicamera Processor, RMC-185 Controller, Two BC-200 4K Block Cameras, and cables (Eight 10 foot SDI Cable Snakes and Two 30 foot HDMI Cables) packed in a portable case. Pair with the H-2800 or the HS-2850 for a complete on-the-go studio!

Comes with three PTC-150TH Cameras and Three 50 foot CAT6 Cables packed in a portable case. This 3 Camera GoKit is a perfect companion to the HS-1500T HDBaseT video switcher, which has a built-in joystick to control pan/tilt and a knob to control zoom of the PTC-150T cameras. HDBaseT technology allows video, control, power and tally to be sent over a single CAT6 cable- so you only need to run one CAT6 cable from the PTC-150T to the HS-1500T switcher.


More Information
Availability Ready to Ship

K2CAMGO includes:

  • 2x PTC-150 HD Pan Tilt Zoom Camera
  • RMC-180 PTZ Camera Controller
  • 2x 50ft SDI Cables
  • BB-MMBARR BNC Barrel
  • 2x 100ft Cat-6 Cables
  • HC-800 Carried Case with Wheels

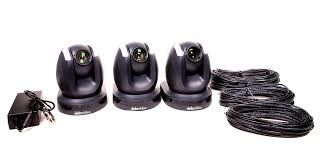

K3CAMGO includes:

  • 3x PTC-150TL HD/SD Video Cameras
  • 2x 50' Cat-6 Cable
  • 1x 100' Cat-6 Cable
  • HC-800 Carried Case with Wheels
Technical Specifications
Camera: Video format
  • 1080p 59.94/50/29.97/25 Hz
  • 1080i 59.94/50 Hz
  • 720p 59.94/50 Hz
  • 480i, 576i (on CVBS)
Camera: Image Sensor: 1/2.8" type progressive scan CMOS sensor

Camera: Resolution: HD / FHD / SD (CVBS only)

Camera: S/N Ratio: 50 dB

Camera: On-Screen Display (OSD)English

Camera: Effective Pixels: 2.14 Mega pixels (Approx.)

Camera: Min. Illumination

  • Color : 0.4 lx (F1.6, 1/30 sec, 50IRE, Gain: High)
  • B/W : 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High)

Camera: Electronic Shutter: 1/50 (1/60), 1/120 (1/100), 1/250, 1/500, 1/1000 sec

Camera: Zoom Ratio30x Optical zoom

Camera: MirrorOFF / Horizontal / Vertical / H+V

Camera: Camera Title (OSD)ON / OFF

Camera: Color Bar: On / Off (Full Bar)

Camera: Day & Night (IR)Auto / Color / BW

Camera: Gamma ControlOff / Normal / Standard Mode 1-4

Camera: Iris ControlAuto / Manual

Camera: Digital Noise ReductionsYes, 0-5

Camera: White BalanceAWB / MWB / One push WB / Outdoor / Indoor / Fluorescent

Camera: AGC / Gain Control

  • Auto / Manual (0 to 39 step)
  • Max. Gain Limit (9 to 39 step)

Camera: Mirror / Flip Image: Yes

Camera: Focus Mode: Auto / Manual

Camera: Panning/Tilting Range: Pan: 270 deg., Tilt: +90 deg. to -20 deg.

Camera: Panning/Tilting Speed:

  • Manual: 1-150 deg./Sec
  • Swing: 1-150 deg./Sec

Camera: Initialization Time: 30 sec

Camera: Coordinate Report: P, T, Z (While Panning , Tilting and Zooming ) by frame

Camera: Preset: 50 Position

Camera: Field of View (Horizontal, Wide)Approx. 63.7 deg. (WIDE END) / 2.3 deg. (TELE END)

Camera: Image Compensation: Day & Night function

Camera: Video Output:

  • 1x HDMI (V1.3)
  • 1x HD-SD-SDI
  • 1x CVBS
  • HDBaseT x 1 to PTC-150T Receiver Box

Camera: Video Format Output: 1 V-p / 75 Ohms

Camera: Tally LED: Dual color (Red, Green)

Camera: Filter: Yes

Camera: Remote Control I/F & Distance:

  • RS-422: Transmit up to 1000m
  • HDBaseT (RJ-45)/DVIP on Receiver Box: Transmit up to 100m

Camera: Focal Length:

  • F=4.3 mm (WIDE) to 129 mm (TELE)
  • F1.6 to F4.7

Camera: Control Protocol: VISCA / HDbaseT

Camera: F/W UpdateUSB 2.0

Camera: IR ControlOne IR controller

Camera: Receiver box ProtocolDVIP / HDBaseT

Camera: Receiver box Video Out1x HDMI (V1.3)

Camera: PowerDC 48V

Camera: ControlDVIP by RJ-45 interface

Camera: HDBaseT DistanceUp to 100M by Cat.6 cable (RJ-45 interface)

Camera: Moving Noise while Tilt<=25dB

Camera: Moving Noise while Pan<=25dB

Camera: Operating Temperature0 to 50 deg. C (32 to 122 deg. F)

Camera: Storage Temperature-10 to 60 deg. C (14 to 140 deg. F)

Camera: Operating Humidity10 % to 80 % (no condensation)

Camera: Certifications: CE / FCC Class A

50' Cat-6 Cable: Type: Cat6 Ethernet Patch Cable

50' Cat-6 Cable: Length50' (15.24m)

50' Cat-6 Cable:

  • Compatibility1000 BASE-T
  • 100 BASE-T
  • 10 BASE-T (IEEE 802.3)
  • 4/16 Mbps Token Ring (IEEE 802.5)
  • 100 VG-AnyLAN 100 Mbps
  • TP-PMD (ANSI X3T9.5)
  • 55/155Mbps ATM
  • Voice

50' Cat-6 Cable: Connector 1Male, Gold-plated RJ-45

50' Cat-6 Cable: Connector 2Male, Gold-plated RJ-45

100' Cat6 Cable: Type:Cat6 Ethernet Patch Cable

100' Cat6 Cable: Length100' (30.48m)

100' Cat6 Cable: Compatibility:

  • 1000 BASE-T
  • 100 BASE-T
  • 10 BASE-T (IEEE 802.3)
  • 4/16 Mbps Token Ring (IEEE 802.5)
  • 100 VG-AnyLAN 100 Mbps
  • TP-PMD (ANSI X3T9.5)
  • 55/155Mbps ATM
  • Voice

100' Cat6 Cable: Connector 1: Male, Gold-plated RJ-45

100' Cat6 Cable: Connector 2: Male, Gold-plated RJ-45

Dimensions N/A
