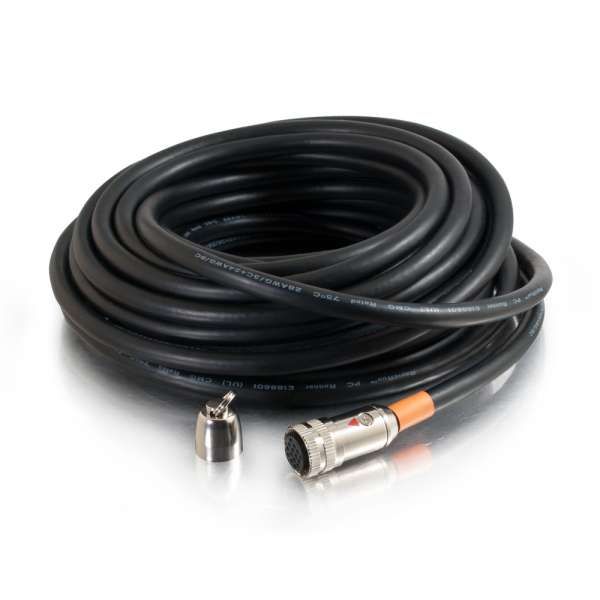

RAPIDRUN PC RUNNER CL2 RATED

When it comes to in-wall audio/video installations, RapidRun is the go to standard in the industry.

Availability: Available For Order

Image SKU Product Name Price Qty
KRR100 100FT RapidRun PC Runner CL2 Rated
$160.97
OR
RAPIDRUN PC RUNNER CL2 RATED

More Views

Details

When it comes to in-wall audio/video installations, RapidRun is the go to standard in the industry.

This cable can handle VGA signals as well as other audio/video signals so it will certainly be able to handle your situation.  Whether you're running cable to a projector for your church, conference room, or setting up a digital media area, or even digital signage, you'll get a clean and clear signal every time.

Additional Information

SKU RAPIDRUN
MPN RAPIDRUN
Features No
Technical Specifications

3 Coax Conductor:
•Impedance: 75±5Ω
•Capacitance: 71±2pF/ft
•Velocity of propagation: 78±1%
•DC resistance: 237±10Ω/km
•Dielectric strength: 500VAC/1 minute min.
•Insulation resistance (500V): 10MΩ/KM
3 Twisted Pair Conductors
•DC resistance: 93.25Ω/m at 20°C
•Dielectric strength:750VAC/minute min.
•Insulation resistance: 100MΩ/KM at 20°C
Physical Characteristics

•Voltage rating: 30V
•Temperature rating: 80°C
•Temperature range: -25° - 80°C
•Minimum bend radius: 90mm
Conductor (qty. 3)
•Conductor type: 28AWG (7/0.127) (tinned copper)
•Dielectric: Foam PE
•Shield: Spiral shield (tinned copper) (90% coverage)
•Insulation: PVC
Conductor (qty. 3 twisted pair)
•Conductor type: 24AWG (7/0.2) (tinned copper)
•Foil shield: Aluminum foil (100% coverage)
•Insulation: PVC
Conductor (qty. 2 conductors)
•Conductor type: 24AWG (7/0.2) (tinned copper)
•Insulation: PVC
Overall Cable
•Foil shield: Aluminum foil (100% coverage)
•Braided shield: 24/8/0.12 (tinned copper) (85% coverage)
•Jacket: Matte PVC - CMG rated
RapidRun Din Connector
•Connector type: 15-pin DIN
•Contact material: Brass, 3µm gold plating
•Insulation: Black PBT
•Dimensions (DxL): 16.0 x 39.0mm

Dimensions N/A
